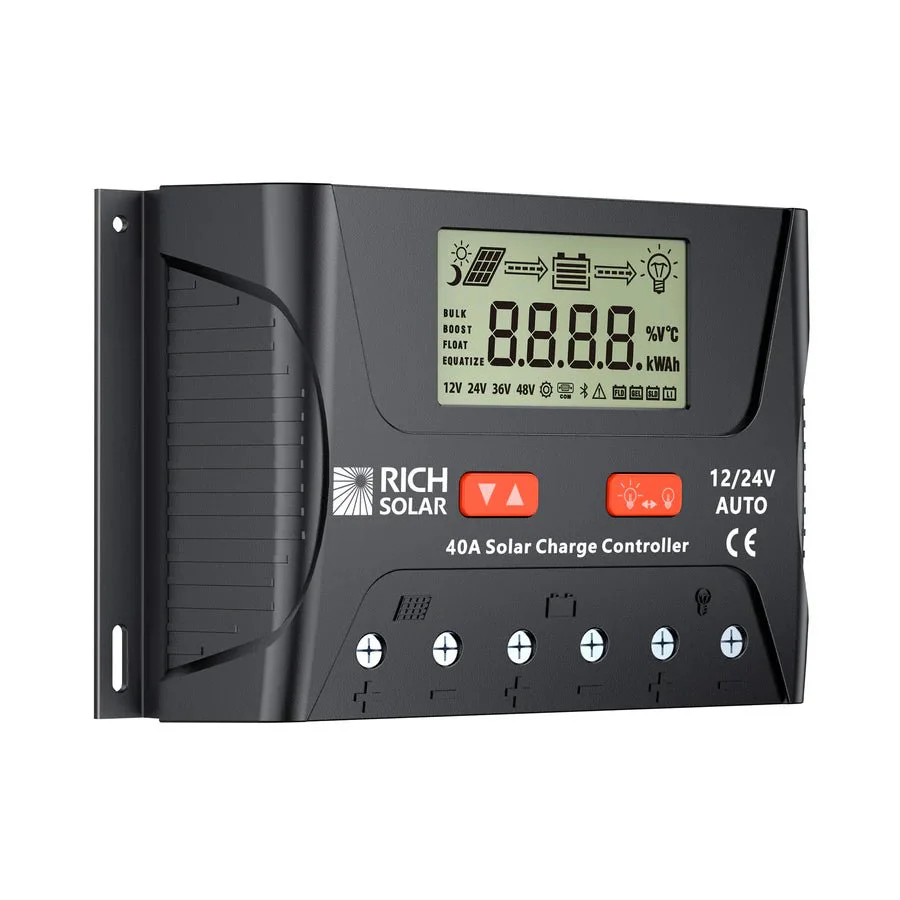

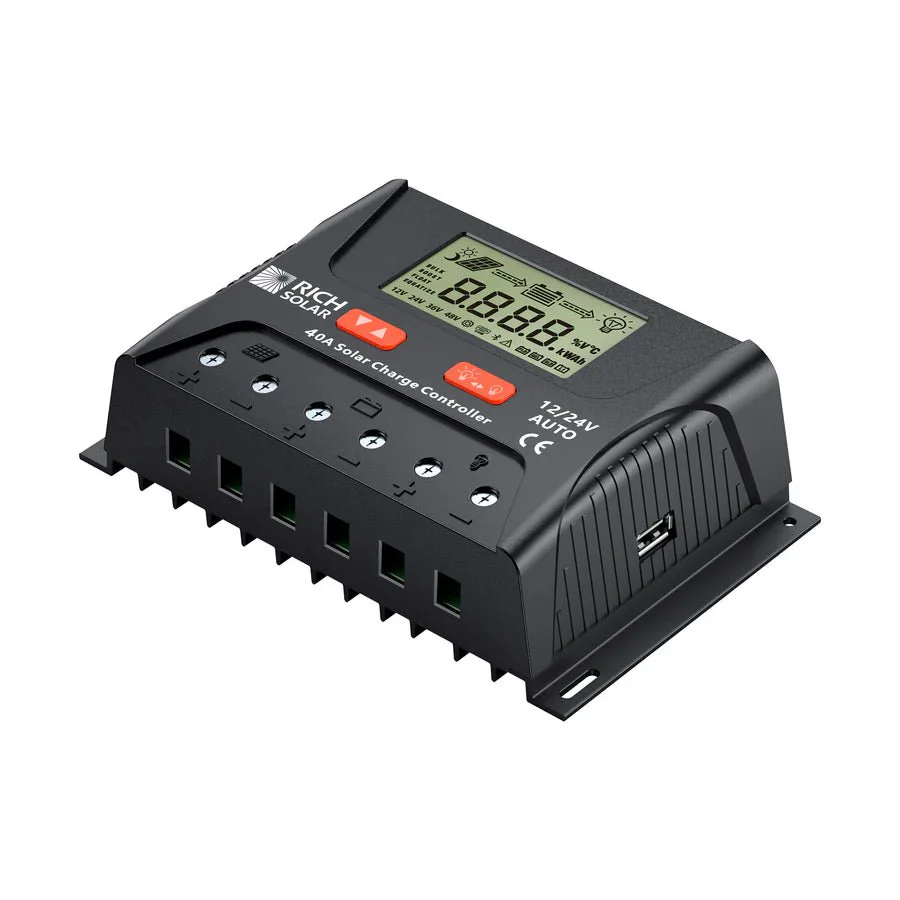

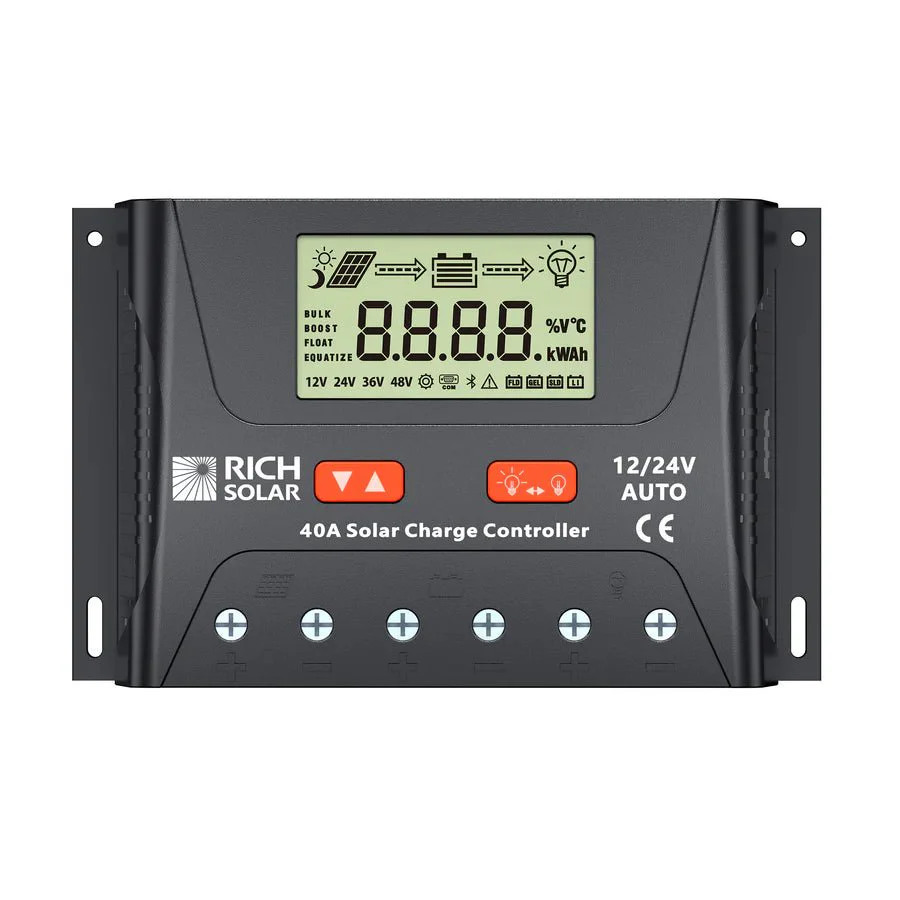

Rich Solar BRAVO LEGEND 40 40 Amp PWM Solar Charge Controller

Features

1. Smart Charging Management

• Auto Voltage Detection: Automatic 12V/24V system recognition (manual setup available)
• Multi-Battery Compatibility: Optimized charging profiles for Sealed, GEL, Flooded, and Lithium battery types
• Advanced 3-Stage PWM Charging: Boost, Float, and Equalization — prevents sulfation in lead-acid batteries (excludes GEL and Lithium)
• Temperature Compensation: Automatic voltage adjustment (-3.0mV/°C/2V) based on ambient temperature (excludes Lithium)


2. Advanced Load Management

• 5 Operating Modes: Light Control (10-min delay) | Light Control+Timer Control (1-14h) | Manual | Debug | Normal On
• Comprehensive Protection: Includes overcharge, over-discharge, overload, short-circuit, and reverse polarity protection
• TVS Lightning Protection: Industrial-grade surge protection for harsh environments


3. User Interface & Durability

• Interactive LCD Display: Dot-matrix screen with real-time system monitoring
• Dual-Button Control: Intuitive parameter adjustment with memory function
• Rugged Construction: IP30-rated enclosure with wide operating temperature range
